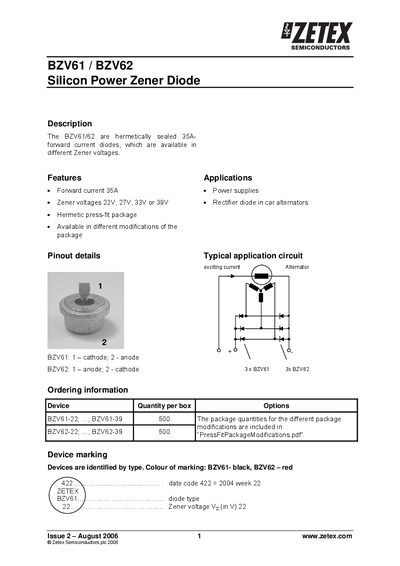

The BZV61/62 are hermetically sealed 35A- forward current diodes, which are available in different Zener voltages.
The BZV61 and BZV62 are hermetically sealed 35 A forward‑current silicon power Zener diodes offered in several Zener voltage options. They are used in power supplies and as rectifier diodes in automotive alternators. Pinout for BZV61 is pin 1 cathode, pin 2 anode; for BZV62 the polarity is reversed.
The document lists absolute maximum ratings, electrical characteristics such as forward voltage, reverse current, dynamic resistance, and thermal data. Packaging dimensions, press‑fit package types and ordering information are also provided.
| Continuous forward current | 35 A |
|---|---|
| Zener voltage options | 22 V, 27 V, 33 V, 39 V |
| Package type | Hermetic press‑fit |
| Maximum junction temperature | 175 °C |
| Storage temperature range | -50 °C to +150 °C |
| Thermal resistance (junction‑to‑case) | 0.8 °C·W |
| Reverse current at -5 V | 200 µA |
The diode supports a continuous forward current of 35 A.
The device is offered with Zener voltages of 22 V, 27 V, 33 V, or 39 V.
Pin 1 is the cathode and pin 2 is the anode.
Typical dimensions are A ≈ 15.5 mm, D ≈ 15.7 mm, with tolerances shown in the table.
