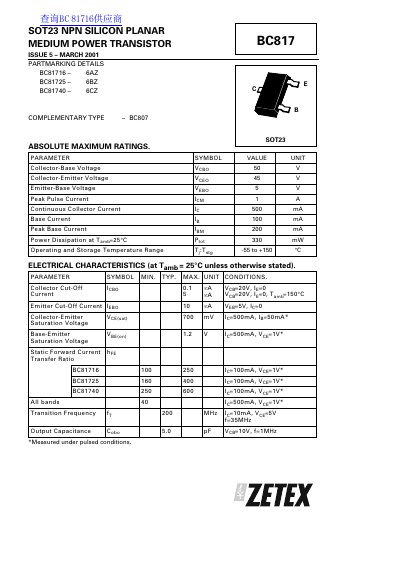

This document describes the specifications and characteristics of NPN silicon planar medium power transistors in SOT23 package. The transistors are available in various models such as BC81716, BC81725, and BC81740, which are complementary to the BC807 series. They have high maximum operating temperature and current carrying capacity, making them suitable for various circuit applications.
The document is a technical specification sheet for the BC817 series of transistors. It lists various suffix codes (BC81716, BC81725, BC81740) corresponding to different static forward current transfer ratios (hFE). The package type is identified as SOT23.
| Package Type | SOT23 |
|---|---|
| Collector-Base Voltage (VCBO) | 50 V |
| Continuous Collector Current (IC) | 500 mA |
| Power Dissipation at Tamb=25°C | 330 mW |
| Operating and Storage Temperature Range | -55 to +150 °C |
| Transition Frequency (fT) | 200 MHz |
The complementary type for the BC817 transistor is BC807.
The maximum continuous collector current is 500 mA.
The power dissipation is rated at 330 mW when the ambient temperature is 25°C.
The device operates and stores within a range of -55 to +150 °C.
