ZXM64N035L3 is a 35V N-channel enhancement mode MOSFET. Its main features include low on-resistance, high switching speed, low threshold, low gate drive and TO220 package. Applications include 100W Class D audio output stage and motor control circuit.

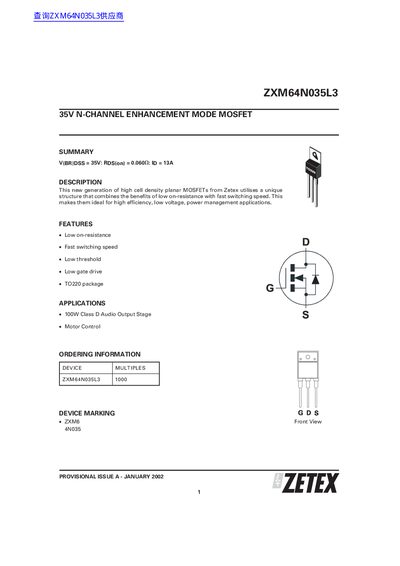

This document is a provisional datasheet for the ZXM64N035L3, a high cell density planar MOSFET from Zetex. It is designed for high efficiency, low voltage power management applications such as Class D audio output stages and motor control. The device features low on-resistance and fast switching speed.
| Drain-Source Voltage | 35 V |
|---|---|
| Static Drain-Source On-State Resistance | 0.060 Ohm |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | TO220 |
The power dissipation is 20 W at an ambient temperature of 25°C.
The device operates and stores within a temperature range of -55 to +150 °C.
