This document describes a new generation of High Density MOSFETs from Zetex, which utilize a unique structure that combines the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage, power management applications.

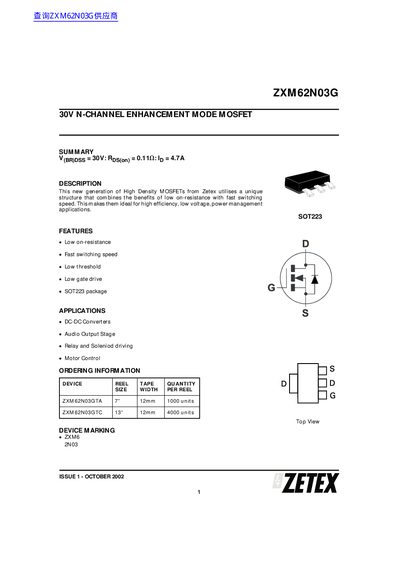

This document is a datasheet for the Zetex ZXM62N03G, a 30V N-Channel Enhancement Mode MOSFET designed for high efficiency and low voltage power management applications. The device utilizes a unique structure to combine low on-resistance with fast switching speed, making it suitable for DC-DC converters, audio output stages, relay driving, and motor control. It is available in a SOT223 package.
| Drain-Source Voltage | 30 V |
|---|---|
| On-Resistance | 0.110 Ohms |
| Package Type | SOT223 |
| Operating Temperature Range | -55 to +150 °C |
| Power Dissipation (Ta=25°C) | 2.0 W |
| Junction to Ambient Thermal Resistance | 62.5 °C/W |
| Gate-Source Threshold Voltage | 1.0 V |
| Input Capacitance | 380 pF |
| Turn-On Delay Time | 2.9 ns |
The device is ideal for DC-DC converters, audio output stages, relay and solenoid driving, and motor control.
The maximum continuous drain current is 4.7 A when Vgs is 10V and Ta is 25°C.
The ZXM62N03G is available in a SOT223 package.
