The ZXM62P02E6 is a 20V P-channel enhancement mode MOSFET that combines the benefits of low on-resistance with fast switching speed, making it ideal for high efficiency, low voltage, power management applications.

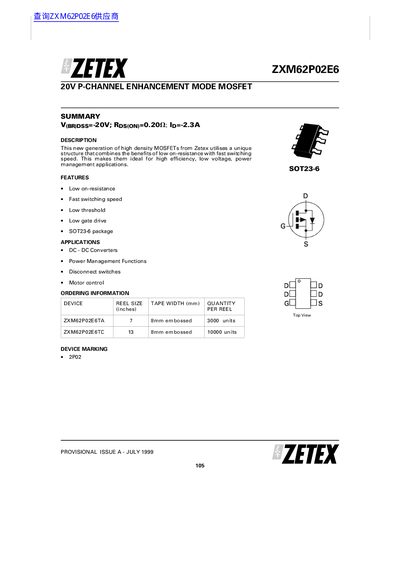

This document is a provisional datasheet for the ZXM62P02E6 P-Channel Enhancement Mode MOSFET from Zetex. The device features a unique structure combining low on-resistance with fast switching speed, making it suitable for high efficiency, low voltage power management applications such as DC-DC converters and motor control.
| Drain-Source Voltage | -20 V |
|---|---|
| On-State Resistance (VGS=-4.5V, ID=-1.6A) | 0.2 Ω |
| Operating Temperature Range | -55 to +150 °C |
| Package Type | SOT23-6 |
It is ideal for DC - DC Converters, Power Management Functions, Disconnect switches, and Motor control.
The device is rated for operation and storage between -55°C and +150°C.
