ZXM62N03E6 is a N-channel enhancement mode MOSFET produced by Zetex. Its features are low on-resistance and fast switching speed, making it ideal for high efficiency, low voltage, power management applications.

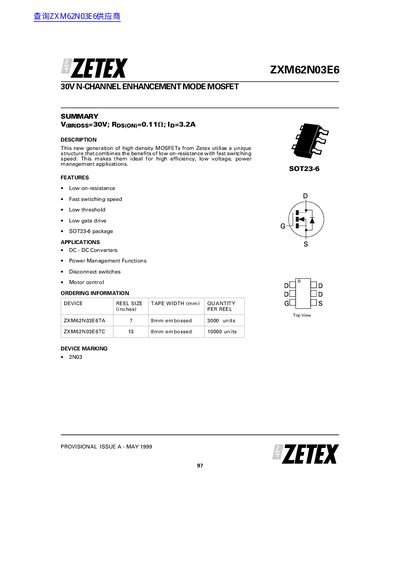

The document describes the ZXM62N03E6, a high-density MOSFET designed for power management applications such as DC-DC converters and motor control. Key features include low on-resistance, fast switching speed, and availability in an SOT23-6 package.
Detailed technical specifications are provided, including absolute maximum ratings like a 30V drain-source voltage and 3.2A continuous current. The datasheet also lists electrical characteristics such as threshold voltage, capacitance values, and switching times under specific test conditions.
| Drain-Source Voltage | 30 V |
|---|---|
| Pulsed Drain Current | 18 A |
| Static Drain-Source On-State Resistance (Vgs=10V) | 0.1 Ω |
| Package Type | SOT23-6 |
It is suitable for DC - DC Converters, Power Management Functions, Disconnect switches, and Motor control.
The document does not state a specific maximum junction temperature limit in the text, but notes that pulse width is limited by the maximum junction temperature.
