ZXM61P03F is the new generation of high density MOSFETs from Zetex, which combines the benefits of low on-resistance with fast switching speed. It is ideal for high efficiency, low voltage, power management applications.

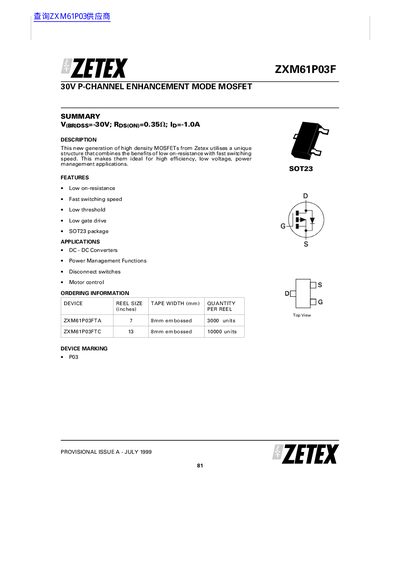

This document is a provisional datasheet for the ZXM61P03F, a 30V P-Channel Enhancement Mode MOSFET manufactured by Zetex. The device utilizes a unique structure to combine low on-resistance with fast switching speed, making it ideal for high efficiency, low voltage power management applications such as DC-DC converters and motor control.
| Drain-Source Voltage | -30 V |
|---|---|
| On-Resistance | 0.35 Ohm |
| Package Type | SOT23 |
| Operating Temperature Range | -55 to +150 °C |
The maximum continuous drain current is -1.1 A when the gate-source voltage is -10 V and the temperature is 25°C.
The maximum power dissipation is 625 mW at a temperature of 25°C.
The device operates and stores within a temperature range of -55 to +150 °C.
