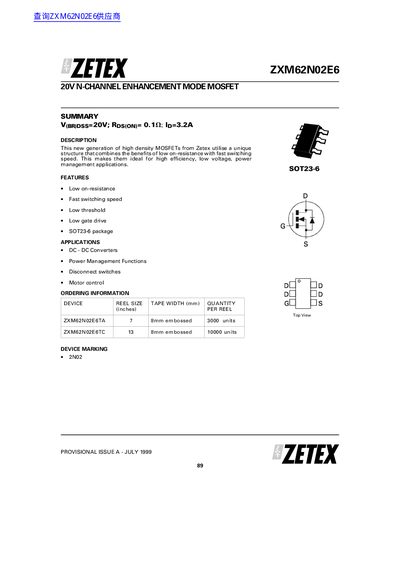

This document introduces a new generation of high density MOSFETs from Zetex, which combine the benefits of low on-resistance with fast switching speed. This makes them ideal for high efficiency, low voltage power management applications.
The document describes the ZXM62N02E6, a high-density MOSFET designed for power management applications such as DC-DC converters and motor control. Key features include low on-resistance (Rds(on) = 0.1Ω), fast switching speed, and availability in an SOT23-6 package.
The datasheet details absolute maximum ratings including a drain-source voltage of 20V and continuous drain current up to 3.2A at 25°C. It also provides comprehensive electrical characteristics for static parameters like threshold voltage and dynamic parameters such as input capacitance, along with typical characteristic graphs for transfer curves, output characteristics, and thermal impedance.
| Package Type | SOT23-6 |
|---|
The device supports a continuous drain current of up to 3.2 A when the gate-source voltage is 4.5 V and the temperature is 25°C.
