ZXM61N03F is a low voltage N-channel enhancement mode MOSFET from Zetex, featuring low on-resistance and fast switching speed, ideal for high efficiency, low voltage, power management applications.

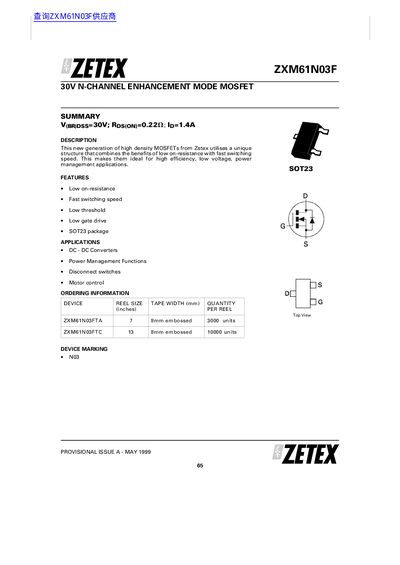

This document is a provisional datasheet issued by Zetex plc in May 1999 for the ZXM61N03F device. It describes a high-density N-channel enhancement mode MOSFET designed for low on-resistance and fast switching speeds, making it suitable for power management applications such as DC-DC converters and motor control.
| Drain-Source Voltage | 30 V |
|---|---|
| Power Dissipation (Ta=25°C) | 625 mW |
| Operating Temperature Range | -55 to +150 °C |
| Static Drain-Source On-State Resistance | 0.22 Ω |
The device supports a continuous drain current of 1.4 A when the gate-source voltage is 10 V and the temperature is 25°C.
The MOSFET can dissipate up to 625 mW when operating in still air on a specific PCB layout.
The absolute maximum limit for the drain-source voltage is 30 V.
