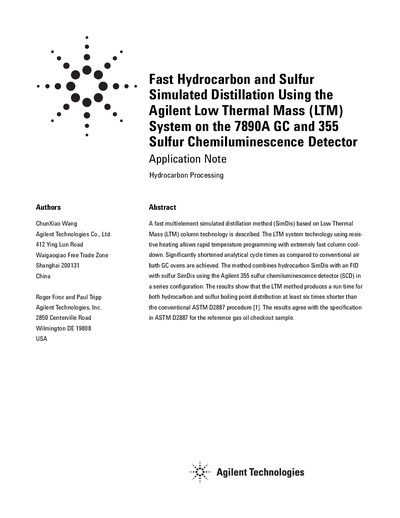

AGILENT Fast Hydrocarbon Sulfur Simulated Distillation Using the Agilent Low Thermal Mass (LTM) System on the 7890A GC 355 Sulfur Chemiluminescence Detector Application Note

A fast multielement simulated distillation method (SimDis) based on Low Thermal Mass (LTM) column technology is described.

Brand: Agilent
Category: Other
Document type: Application Note
Language: English
Pages: 8
File format: PDF
File size: 191 KB
Published: 02 July, 2012
Updated: 30 September, 2023
Model: 7890A
MD5 checksum: 3CC822A3BCE05EA2482C2C4F7A148E9A
PDF: AGILENT Fast Hydrocarbon Sulfur Simulated Distillation Using the Agilent Low Thermal Mass (LTM) System on the 7890A GC 355 Sulfur Chemiluminescence Detector Application Note PDF

About this manual

The document details a method for fast hydrocarbon and sulfur simulated distillation (SimDis) utilizing the Agilent Low Thermal Mass (LTM) column technology. This system uses resistive heating to allow rapid temperature programming and extremely fast column cooldown, significantly shortening analytical cycle times compared to conventional air bath GC ovens. The method combines hydrocarbon SimDis with an FID and sulfur SimDis using the Agilent 355 sulfur chemiluminescence detector (SCD) in a series configuration.

What's inside

Introduction
Experimental
Gas Chromatographic Conditions
Processing Two-Channel Data
Results and Discussion
RGO SimDis Results
Calibration Mixture Repeatability

Specifications

Column dimensions	5 m x 320 mm x 1 pm
Column temperature program	45 to 350 °C at 150 °C/min
Run time (LTM)	less than 2.5 minutes
Run time (Conventional)	15 minutes
Speed improvement	at least six times shorter

Frequently asked questions

How much faster is the LTM method compared to conventional ASTM D2887?

The LTM method produces a run time that is at least six times shorter than the conventional ASTM D2887 procedure.

What is the run time for the reference gas oil (RGO) analysis using LTM?

The run time for the RGO analysis using LTM is less than 2.5 minutes.

Does the LTM method agree with ASTM D2887 specifications?

Yes, the SimDis results agree with the specifications in ASTM D2887 for the reference gas oil checkout sample.
