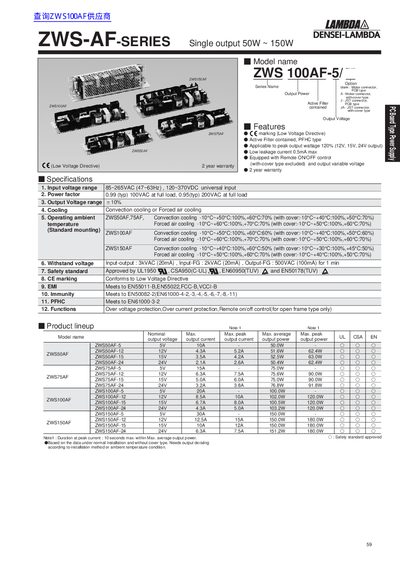

This document provides an overview of the Densei Lambda ZWS-AF Series, which consists of single output power supplies ranging from 50W to 150W. The series features active filters, low leakage current, and optional remote ON/OFF control. Models are available with Molex or JST connectors and with or without covers.
| Output Power | 50W ~ 150W |
|---|---|
| Input voltage range | 85~265VAC (47~63Hz), 120~370VDC |
| Power factor | 0.99 (typ) at 100VAC full load |
| Output Voltage range | +/- 10% |
| Cooling method | Convection cooling or Forced air cooling |
| Operating ambient temperature | -10°C~+50°C (Convection) |
| Safety standards | UL1950, CSA950, EN60950, EN50178 |
| EMI Compliance | EN55011-B, EN55022, FCC-B, VCCI-B |
| Protection functions | Over voltage protection, Over current protection |
The product comes with a 2 year warranty.
Yes, the series contains an active filter of PFHC type.
The available output voltages are 5V, 12V, 15V, and 24V.
