NV-POWER SERIES (NV-175) is a high efficiency, high power density, flexible power solution from Power+. The product offers up to 5 outputs with a maximum output power of 175/180/200 watts, no minimum load, and fits in a 1U application. It has also been approved for medical use.
The Lambda NV-175 is a high‑efficiency, high‑power‑density power supply designed for 1U applications and a range of markets including medical, industrial, and networking. It offers up to five configurable output channels with flexible voltage and current options, and includes safety features such as short‑circuit and over‑temperature protection.

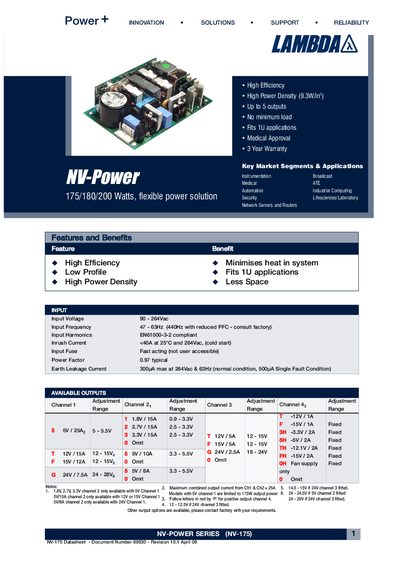

The datasheet provides full electrical specifications, environmental limits, isolation ratings, and compliance with international safety and EMC standards. It also includes mechanical drawings, pin functions, and global interface signal options for customized configurations.
| Input Voltage | 90 - 264 Vac |
|---|---|
| Input Frequency | 47 - 63 Hz (440 Hz with reduced PFC) |
| Power Factor | 0.97 typical |
| Efficiency | up to 90% |
| Maximum Output Power | 175 W |
| Number of Outputs | Up to 5 |
| Power Density | 9.3 W/in² |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 °C to 85 °C |
| Isolation (Input‑to‑Output) | 4.3 kV dc |
The input voltage range is 90 V to 264 V AC.
It provides up to five configurable output channels.
The unit is limited to a maximum output power of 175 W.
