The datasheet provides detailed information on 59 models of PC board power supplies, including model, input voltage range, power factor, output voltage range, cooling method, operating ambient temperature, withstand voltage, safety standard, CE marking, EMI, immunity, PFHC and function.

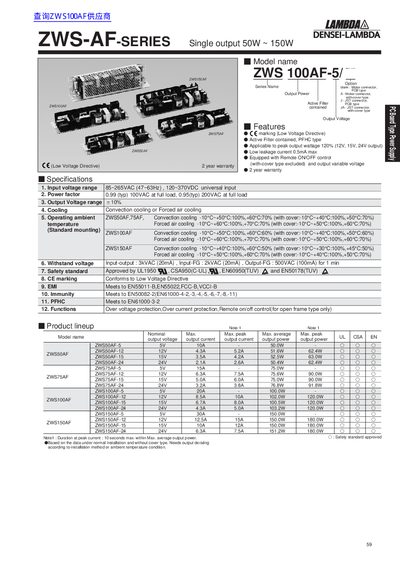

This document provides specifications and product lineup information for the Densei-Lambda ZWS-AF Series, which includes single output power supplies ranging from 50W to 150W. The series features an active filter contained within the unit, a power factor of 0.99 typical at 100VAC, and low leakage current of 0.5mA maximum. Models are available with Molex or JST connectors and optional cover types.
| Output Power | 50W ~ 150W |
|---|---|
| Input voltage range | 85~265VAC (47~63Hz), 120~370VDC |
| Power factor | 0.99 (typ) at 100VAC full load |
| Output Voltage range | +/- 10% |
| Cooling method | Convection cooling or Forced air cooling |
| Operating ambient temperature | -10°C~+50°C (Convection) |
| Safety standards | UL1950, CSA950, EN60950, EN50178 |
| EMI Compliance | EN55011-B, EN55022, FCC-B, VCCI-B |
The product comes with a 2 year warranty.
Yes, the series contains an active filter and meets PFHC type standards.
The maximum leakage current is 0.5mA.
Yes, the units are equipped with Remote ON/OFF control, excluding the with-cover type.
