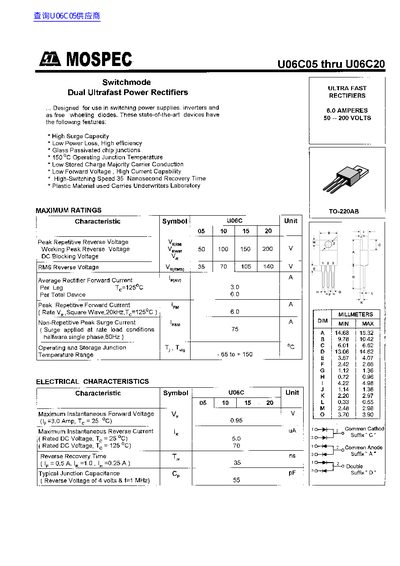

This document provides technical specifications for the MOSPEC U06C05 through U06C20 series of dual ultrafast power rectifiers. These devices are designed for use in switching power supplies, inverters, and as free-wheeling diodes. Key features include a high surge capacity, low power loss, and a 35 nanosecond recovery time.
| Average Rectifier Forward Current (Per Leg) | 3.0 A |
|---|---|
| Average Rectifier Forward Current (Per Total Device) | 6.0 A |
| Peak Repetitive Forward Current | 6.0 A |
| Non-Repetitive Peak Surge Current | 75 A |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
| Maximum Instantaneous Forward Voltage | 0.95 V |
| Reverse Recovery Time | 35 ns |
| Typical Junction Capacitance | 55 pF |
The devices can operate at a junction temperature of up to 450°C.
The peak repetitive reverse voltage ranges from 50 to 200 volts.
The maximum average rectifier forward current per leg is 3.0 amperes.
