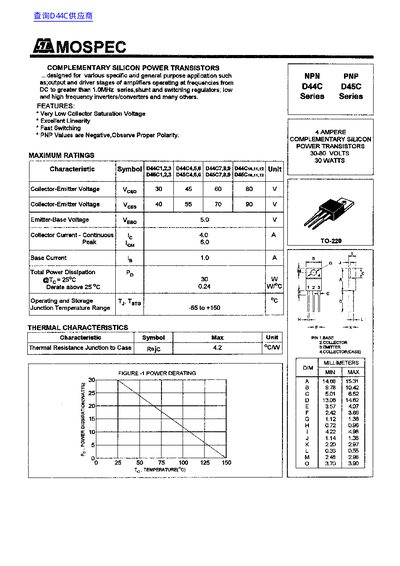

This document provides technical specifications for the MOSPEC D44C Series NPN and D45C Series PNP complementary silicon power transistors. These devices are designed for various specific and general purpose applications, including output and driver stages of amplifiers, switching regulators, and inverters/converters operating from DC to greater than 1.0MHz.
| Collector-Emitter Voltage (Max) | 30 to 80 Volts |
|---|---|
| Total Power Dissipation | 30 W |
| Package Type | TO-220 |
| Operating Temperature Range | -55 to +150 °C |
| Current-Gain Bandwidth Product (Typ) | 50 MHz (D44C Series) |
| Rise Time (Typ) | 0.3 us |
The devices operate and store in a temperature range of -55 to +150 °C.
The maximum total power dissipation is 30 W when the case temperature is 25°C.
