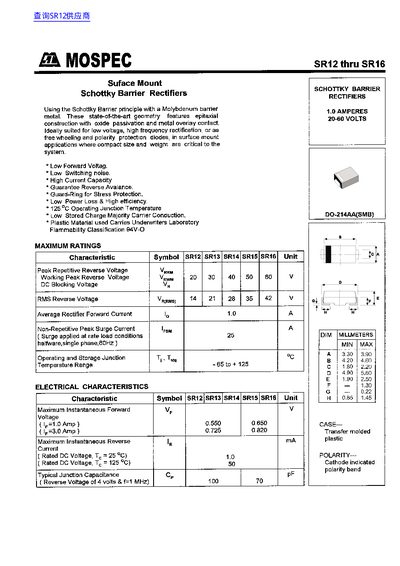

This document provides technical specifications for the MOSPEC SR12 through SR16 series of Surface Mount Schottky Barrier Rectifiers. These devices utilize a Molybdenum barrier metal and epitaxial construction with oxide passivation, making them ideal for low voltage, high frequency rectification applications where compact size is critical.
The datasheet details maximum ratings including peak repetitive reverse voltages ranging from 20V to 60V and an average forward current of 1.0 Ampere. It also includes electrical characteristics such as maximum instantaneous forward voltage, junction capacitance, and typical performance curves for forward and reverse operation.
| Package Type | DO-214AA(SMB) |
|---|---|
| Maximum Operating Junction Temperature | 425°C |
| Flammability Classification | UL 94V-0 |
The devices are packaged in a DO-214AA(SMB) plastic case.
These Schottky Barrier Rectifiers are ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity protection diodes in surface mount applications.
The device has a guaranteed 425°C Operating Junction Temperature.
