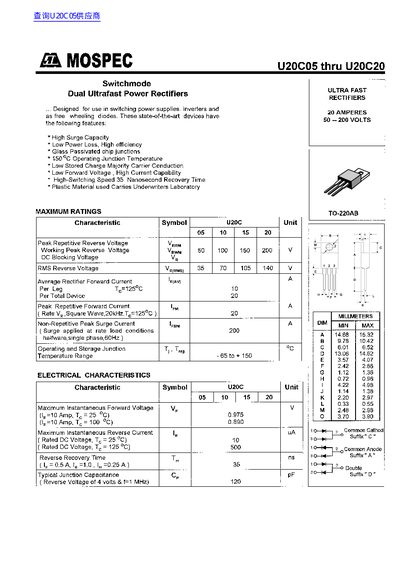

This document provides technical specifications for the MOSPEC U20C05 through U20C20 series of dual ultrafast power rectifiers. These devices are designed for use in switching power supplies, inverters, and as free-wheeling diodes.
Key features include high surge capacity, low power loss with high efficiency, glass passivated chip junctions capable of 450°C operating temperatures, and a fast 35 nanosecond recovery time. The datasheet details maximum ratings such as peak repetitive reverse voltage up to 200V and average rectifier forward current of 10A per leg.
| Recovery Time | 35 Nanosecond |
|---|---|
| Average Rectifier Forward Current (Per Leg) | 10 A @ Tj=125°C |
They are designed for use in switching power supplies, inverters, and as free wheeling diodes.
The devices have a 450°C Operating Junction Temperature rating.
