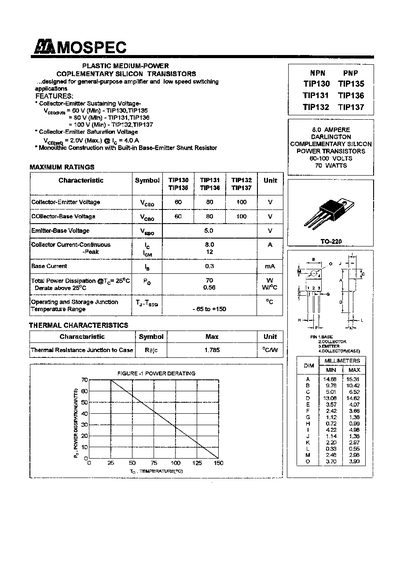

The EAMOSPEC TIP130‑TIP137 series are medium‑power complementary silicon transistors intended for general‑purpose amplifier and low‑speed switching applications. The series includes NPN devices (TIP130, TIP131, TIP132) and PNP counterparts (TIP135, TIP136, TIP137) with voltage ratings from 60 V to 100 V.
Key electrical characteristics are listed for each part, including collector‑emitter sustaining voltage, saturation voltage, continuous collector current, and power dissipation. Thermal and dynamic parameters such as junction‑to‑case resistance and output capacitance are also provided, together with characteristic curves for current gain and safe operating area.
| Collector‑Emitter Saturation Voltage (VCE(sat)) max @ Ic=4 A | 2.0 V |
|---|---|
| Continuous Collector Current (IC) max | 8 A |
| Total Power Dissipation at 25 °C | 70 W |
| Operating Temperature Range | -65 °C to +150 °C |
| Base‑Emitter On Voltage (VBE(on)) @ Ig=4 A | 2.5 V |
The transistors can handle up to 8 A continuous collector current.
Each device is rated for 70 W total power dissipation at 25 °C.
The devices operate from –65 °C up to +150 °C.
