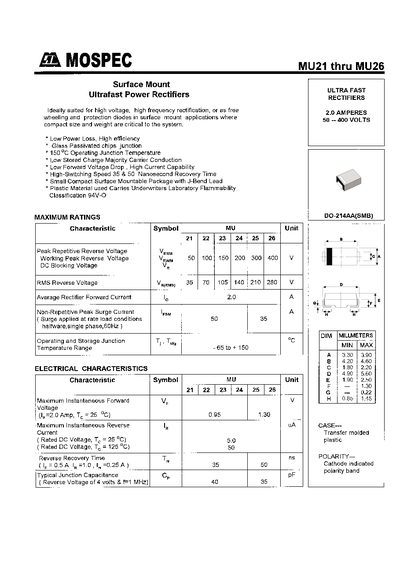

The MU21‑MU26 series are surface‑mount ultrafast power rectifiers designed for high‑voltage, high‑frequency rectification, free‑wheeling, and protection in compact systems. They feature low forward voltage drop, high current capability, and a plastic package with UL 94‑V0 flammability rating.
Key specifications include a maximum forward current of 2.0 A, peak repetitive reverse voltage from 50 V to 400 V depending on the model, reverse recovery times of 35‑50 ns, and operation over a temperature range of –65 °C to +150 °C. The devices are supplied in a DO‑214AA (SMB) surface‑mount package.
| Maximum Forward Current | 2.0 A |
|---|---|
| Operating Junction Temperature | 150 °C |
| Storage Temperature Range | -65 °C to +150 °C |
| Package Type | DO‑214AA (SMB) |
The devices are rated for a maximum average forward current of 2.0 A.
They are supplied in a DO‑214AA (SMB) surface‑mount package.
They operate from –65 °C up to +150 °C.
