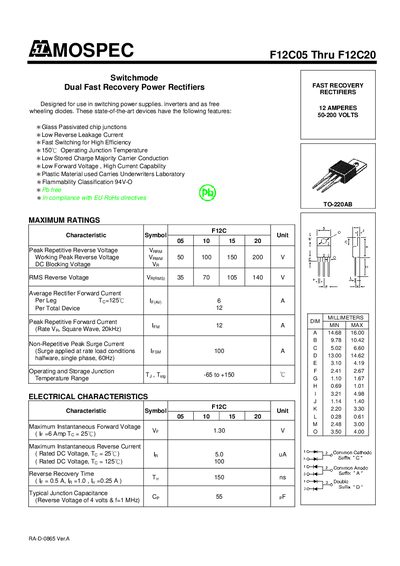

The MOSPEC F12C05‑F12C20 datasheet provides ratings, electrical characteristics, and dimensions for the switchmode dual fast recovery power rectifiers.
The MOSPEC F12C05‑F12C20 series are switchmode dual fast‑recovery power rectifiers designed for use in switching power supplies, inverters, and as free‑wheeling diodes. Key features include glass‑passivated chip junctions, low reverse leakage, fast switching, and a 150 °C operating junction temperature.
The datasheet lists maximum ratings such as peak repetitive reverse voltage (50‑200 V), forward current capability (up to 12 A), and reverse recovery time of 150 ns. Electrical characteristics include a forward voltage of 1.30 V at 6 A, reverse current of 5 µA, typical junction capacitance of 55 pF, and an operating temperature range of –65 °C to +150 °C. Mechanical dimensions for the TO‑220AB package are also provided.
