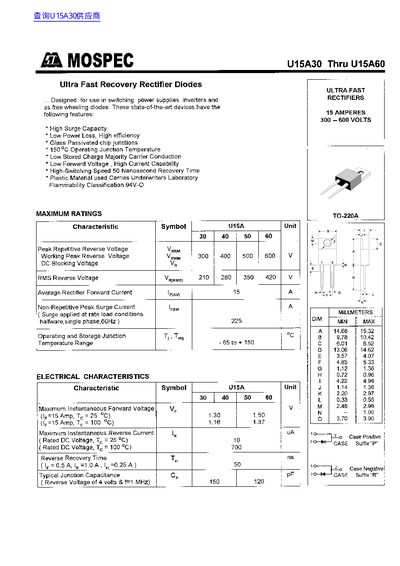

This document is a technical datasheet for the MOSPEC U15A30 through U15A60 Ultra Fast Recovery Rectifier Diode series. These devices are specifically designed for use in switching power supplies and inverters as free-wheeling diodes. Key features include high surge capacity, low power loss with high efficiency, glass passivated chip junctions capable of 450°C operating temperatures, and a fast switching speed with a 50 nanosecond recovery time.
| Peak Repetitive Reverse Voltage | 300 - 600 V |
|---|---|
| Operating Junction Temperature Range | -65 to +150 C |
| Reverse Recovery Time | 50 ns |
The devices can operate within a junction temperature range of -65 to +150 C.
The high-switching speed feature provides a 50 Nanosecond Recovery Time.
