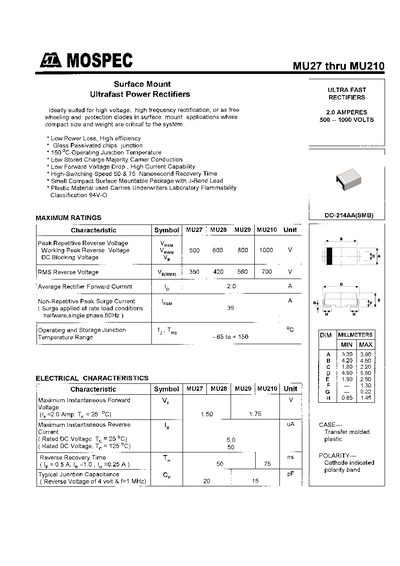

The MOSPEC MU27‑MU210 series are surface‑mount ultrafast power rectifiers designed for high‑voltage, high‑frequency applications where size and weight are critical. They feature low power loss, high efficiency, and a glass‑passivated junction for reliable operation up to 150 °C.
Key electrical characteristics include a maximum average forward current of 2 A, peak repetitive reverse voltages from 500 V to 1000 V, and reverse recovery times of 50‑75 ns. The devices are supplied in a DO‑214AA (SMB) package and meet UL 94V‑0 flammability classification.
| Maximum Average Forward Current | 2.0 A |
|---|---|
| RMS Reverse Voltage | 350‑700 V |
| Operating Junction Temperature Range | -65 °C to +150 °C |
| Forward Voltage Drop (typical) | 0.85‑1.45 V |
| Reverse Recovery Time | 50‑75 ns |
| Package Type | DO‑214AA (SMB) |
The maximum average forward current is 2.0 A.
They have a reverse recovery time of 50 ns to 75 ns.
They operate from –65 °C up to +150 °C.
They are supplied in a DO‑214AA (SMB) surface‑mount package.
