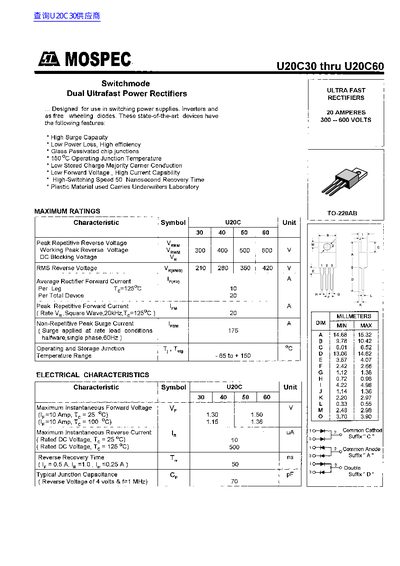

This document provides technical specifications for the MOSPEC U20C30 through U20C60 series of ultrafast power rectifiers. These devices are designed for use in switching power supplies, inverters, and as free-wheeling diodes.
Key features include a high surge capacity, low power loss with high efficiency, glass passivated chip junctions capable of 150°C operating temperatures, and a fast 50 nanosecond recovery time. The datasheet lists maximum ratings such as 20 amperes average forward current and reverse voltages ranging from 300 to 600 volts.
| Average Rectifier Forward Current (Per Leg) | 10 A |
|---|---|
| Operating Junction Temperature Range | -65 to +150 °C |
| Reverse Recovery Time | 50 ns |
| Package Type | TO-220AB |
The devices can operate at a junction temperature up to +150°C.
The devices can operate at a junction temperature range of -65 to +150 degrees Celsius.
The rectifiers are rated for an average forward current of 10 amperes per leg at a case temperature of 125 degrees Celsius.
The devices have a high-switching speed with a 50 nanosecond recovery time.
