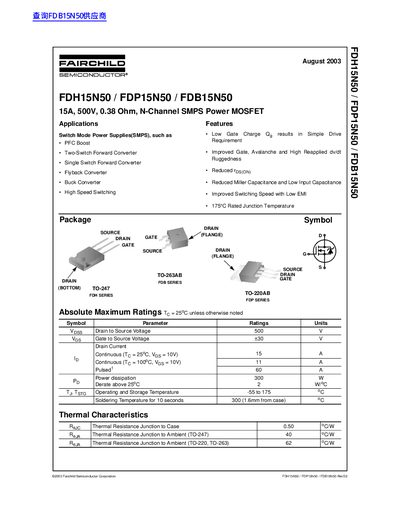

This document describes the features and characteristics of the FDH15N50 / FDP15N50 / FDB15N50 products, including low gate charge Qg, improved gate, avalanche and high reapplied dv/dt ruggedness, reduced rDS(ON), reduced Miller capacitance and low input capacitance, improved switching speed with low EMI, etc. The product is suitable for switch mode power supplies (SMPS) applications, such as PFC Boost, Two-Switch Forward Converter, Single Switch Forward Converter, Flyback Converter, Buck Converter, and High Speed Switching.
This document provides technical specifications and characteristics for the FDH15N50, FDP15N50, and FDB15N50 series of N-channel SMPS Power MOSFETs. These devices are optimized for use in Switch Mode Power Supplies (SMPS) including PFC Boost, Forward Converter, Flyback, and Buck topologies.
| Drain to Source Voltage | 500 V |
|---|---|
| On-Resistance (Typical) | 0.38 Ohm |
| Operating Junction Temperature | -55 to 175 °C |
| Thermal Resistance (Junction-to-Case) | 0.50 °C/W |
These devices are intended for use in Switch Mode Power Supplies (SMPS), including PFC Boost, Two-Switch Forward Converter, Single Switch Forward Converter, Flyback Converter, and Buck Converter.
