AMD Am29LV800B 8 Megabit 3.0 Volt-only Boot Sector Flash Memory is a single power supply, high performance, low power consumption storage chip with flexible sector architecture and sector protection function.

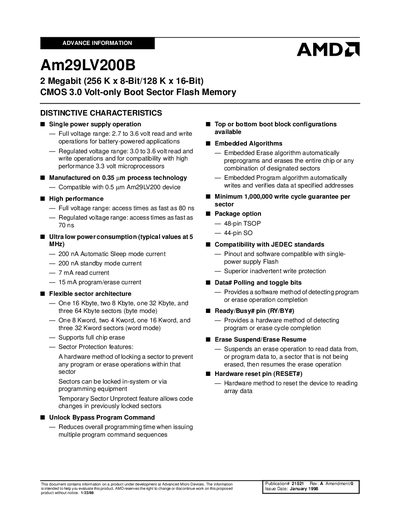

The document describes the Am29LV200B, a 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) CMOS Flash Memory manufactured on a 0.35 um process technology. It is designed for single power supply operation with read and write voltages ranging from 2.7 to 3.6 volts, or regulated operations between 3.0 and 3.6 volts.
| Memory Capacity | 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) |
|---|---|
| Process Technology | 0.35 um |
| Full Voltage Range Access Time | 80 ns |
| Regulated Voltage Range Access Time | 70 ns |
| Automatic Sleep Mode Current | 200 nA |
| Read Current (typical) | 7 mA |
The device supports a full voltage range of 2.7 to 3.6 volts for read and write operations.
The Am29LV200B is offered in 48-pin TSOP and 44-pin SO packages.
