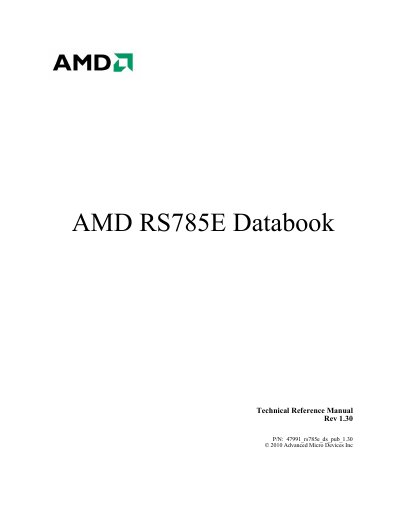

AMD RS785E Databook Technical Reference Manual

About this manual

This document is a technical databook for the AMD RS785E graphics controller. It provides an overview of the chip's capabilities, including CPU HyperTransport interfaces, memory support (DDR2/DDR3), PCI Express connections, and various display output options like DVI/HDMI and DisplayPort.

The manual details functional descriptions of host and side-port memory interfaces, LVDS configurations, and clock generation. It also includes comprehensive pin descriptions with strap options, timing specifications for bus operations, electrical characteristics, thermal limits, and power management implementation.

What's inside

• Overview
• Functional Descriptions
• Pin Descriptions and Strap Options
• Timing Specifications
• Electrical Characteristics and Physical Data
• Power Management and ACPI
• Testability

Specifications

Frequently asked questions

What is the specific revision number of this manual?

This document is Revision 1.30.

When was this version of the manual released?

This version was released in November 2010.

What is the part number for this document?

The part number is 47991_rs785e_ds_pub_1.30.
