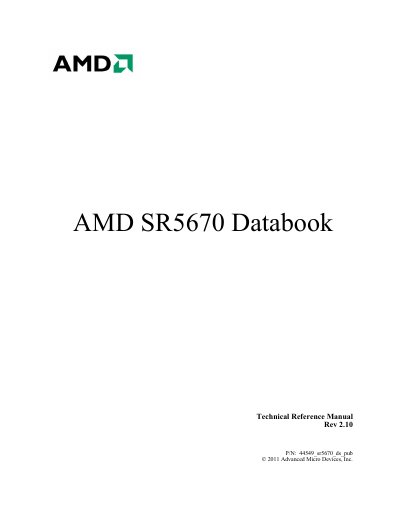

The document is the AMD SR5670 Databook Technical Reference Manual, which describes the features and characteristics of the product.
This document is a technical reference manual (Databook) for the AMD SR5670 chipset. It provides detailed information on the device's architecture, including CPU and PCI Express interfaces, interrupt handling, and power management features.
The guide covers functional descriptions of HyperTransport and PCI Express interfaces, pin descriptions with strap options, timing specifications, electrical characteristics, thermal data, and testability features for system designers.
The AMD SR5670 is a chip that supports multiple processors and northbridges.
The current document, Revision 2.10, was released in June 2011.
