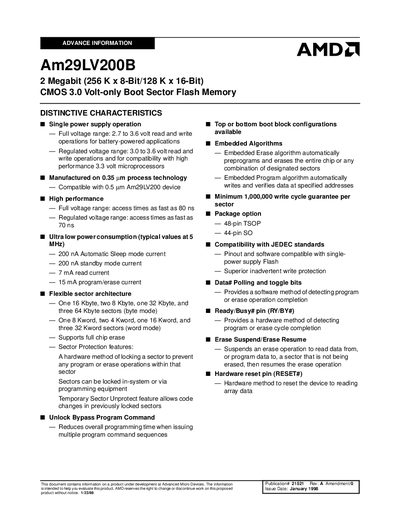

Am29LV200B is a 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory developed by AMD. It has the characteristics of single power supply operation, high performance, ultra low power consumption, flexible sector architecture and sector protection.
The AMD Am29LV200B is a 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) CMOS Flash memory designed for single power supply operation. It features a 3.0 volt-only read, program, and erase capability, eliminating the need for a separate Vpp voltage. The device is manufactured using AMD's 0.35 um process technology and offers access times as fast as 70 ns in the regulated voltage range.
| Capacity | 2 Megabit (256 K x 8-Bit/128 K x 16-Bit) |
|---|---|
| Voltage Range (Regulated) | 3.0 to 3.6 volt |
| Voltage Range (Full) | 2.7 to 3.6 volt |
| Access Time (Regulated) | 70 ns |
| Access Time (Full) | 80 ns |
| Standby Current | 200 nA |
| Read Current | 7 mA |
| Program/Erase Current | 15 mA |
| Write Cycle Guarantee | 1,000,000 |
| Packages | 48-pin TSOP, 44-pin SO |
No, the device is designed to be programmed in-system using only a single 3.0 volt Vcc supply.
The standard device offers access times of 70, 80, 90, and 120 ns.
Yes, it is compatible with high performance 3.3 volt microprocessors in the regulated voltage range.
