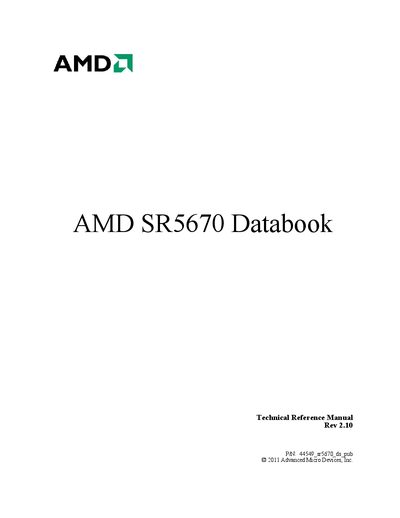

AMD SR5670 Databook

This document is the AMD SR5670 Databook Technical Reference Manual, which describes the features and characteristics of the AMD SR5670 chipset.

Brand: AMD
Category: other commodities
Document type: Datasheet
Language: English
Pages: 80
File format: PDF
File size: 871 KB
Published: 09 July, 2012
Updated: 29 September, 2023
Model: SR5670
MD5 checksum: 8689D9EAD71FE3B17C678F8BBE2797A6
PDF: AMD SR5670 Databook PDF

About this manual

This document serves as a technical reference manual for the AMD SR5670 chipset. It provides detailed information on the device's interfaces, including HyperTransport and PCI Express, as well as its power management and ACPI features. The manual outlines the functional descriptions, pin assignments, and strapping options necessary for system integration.

What's inside

Overview
Functional Descriptions
Pin Descriptions and Strap Options
Timing Specifications
Electrical Characteristics
Power Management and ACPI
Testability
Package Information

Specifications

Document Revision	2.10
Part Number	44549_sr5670_ds_pub
Package Type	692-Pin FCBGA

Frequently asked questions

What is the AMD SR5670?

The AMD SR5670 is a Technical Reference Manual for an ASIC.

When was this document published?

This document was published in June 2011.

What is the part number of this manual?

The part number for this manual is 44549_sr5670_ds_pub.
