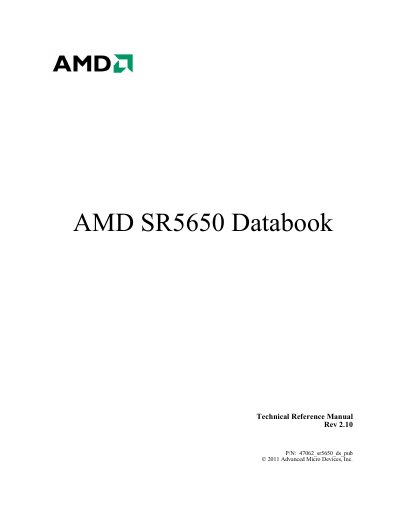

AMD SR5650 Databook Technical Reference Manual

About this manual

The document serves as a comprehensive technical reference manual for the AMD SR5650 chipset. It details the device's architecture, including support for multiple processors and Northbridges via HyperTransport interfaces, as well as PCI Express connectivity.

Key sections cover functional descriptions of interrupt handling, reliability features like parity protection, and detailed pin assignments with strap options. The manual also includes specific timing specifications for bus operations, electrical characteristics such as maximum ratings and DC parameters, thermal data, and power management implementation guidelines.

What's inside

• Overview
• Functional Descriptions
• Pin Descriptions and Strap Options
• Timing Specifications
• Electrical Characteristics and Physical Data
• Power Management and ACPI
• Testability

Frequently asked questions

What is the part number of this AMD SR5650 Technical Reference Manual?

The part number for this document is 47062_sr5650_ds_pub.

What revision level is this AMD SR5650 Databook?

This manual is Revision 2.10.

When was the latest revision of this manual released?

The latest revision, 2.10, was released in June 2011.
