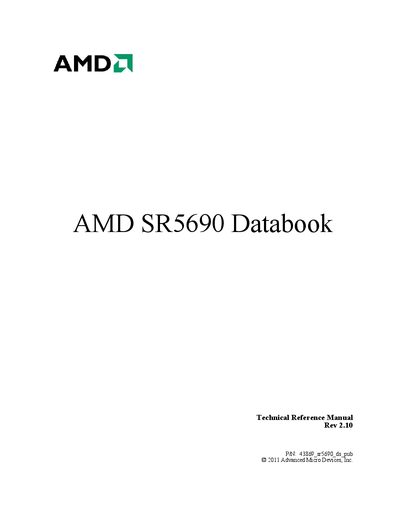

AMD SR5690 Databook Technical Reference Manual

About this manual

This document serves as a technical reference manual for the AMD SR5690 chipset. It provides detailed information on the device's features, including CPU and PCI Express interfaces, multiple processor support, and power management capabilities.

The guide covers functional descriptions of HyperTransport and PCI Express interfaces, interrupt handling mechanisms, and reliability features such as parity protection. Additionally, it includes comprehensive pin descriptions, strapping options, timing specifications for various buses, electrical characteristics, thermal limits, and package information.

What's inside

• Overview
• Functional Descriptions
• Pin Descriptions and Strap Options
• Timing Specifications
• Electrical Characteristics
• Power Management and ACPI
• Testability

Frequently asked questions

What is the package type for the AMD SR5690?

The device uses a 692-pin FCBGA package.

Which solder reflow profile is recommended for the SR5690?

The manual recommends using SAC305/405 Tin-Silver-Copper solder.

What is the revision number of this technical reference manual?

This document is Revision 2.10.
