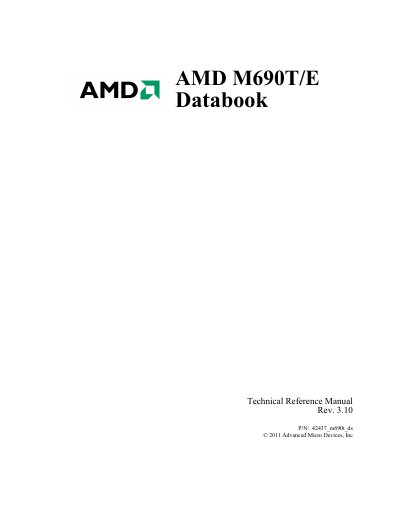

This is an AMD M690T/E databook
This document is a technical databook for the AMD M690T and M690E graphics controller devices. It serves as a comprehensive reference for engineers designing systems using these components, providing detailed information on device features, interfaces, and operational parameters.
The manual covers functional descriptions of host and memory interfaces, pin assignments with strap options, timing specifications for various bus protocols including HyperTransport and PCI Express, and electrical characteristics such as DC levels and thermal limits. It also includes sections on power management implementation and testability features.
The product's copy protection technology is authorized only for home and other limited pay-per-view uses.
The products are not designed, intended, authorized or warranted for use as components in systems intended for surgical implant into the body.
