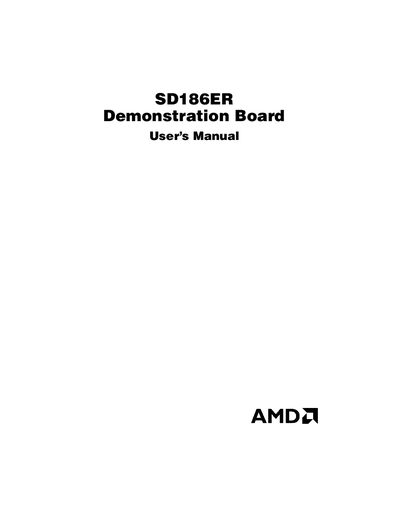

SD186ER Demonstration Board User's Manual, introduces the functional characteristics of the demonstration board and provides a quick start guide
The AMD SD186ER Demonstration Board is designed as an exceptionally small, low-cost evaluation platform for the Am186ER microcontroller. It serves as a stand-alone system core that facilitates prototyping with external devices by providing access to the processor's signals via a 104-pin expansion interface.
| Microcontroller Frequency | 50-MHz |
|---|---|
| Flash Memory Capacity | 256 Kbyte |
| Expansion Interface Pins | 104-pin |
It is designed as an exceptionally small, low-cost product for demonstration of the AMD Am186ER microcontroller.
The board includes a resident utility called E86MON (E86 family boot monitor).
The board features one RS-232 serial port with a DB-9 connector.
