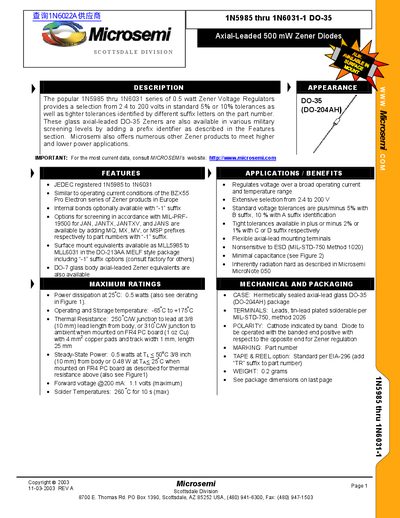

This document provides specifications of 1N5985 to 1N6031 series of 0.5 watt Zener Voltage Regulators, including voltage, package, rated power, applications, features, etc.
Microsemi offers the popular 1N5985 through 1N6031 series of 0.5 watt Zener Voltage Regulators in standard glass axial-leaded DO-35 packages. These devices provide a voltage selection from 2.4 to 200 volts with various tolerance options, including 5%, 10%, and tighter tolerances identified by suffix letters.
| Power dissipation at 25ºC | 0.5 watts |
|---|---|
| Operating and Storage temperature | -65ºC to +175ºC |
| Thermal Resistance (junction to lead) | 250 ºC/W |
| Forward voltage @200 mA | 1.1 volts maximum |
| Solder Temperatures | 260 ºC for 10 s max |
The series provides a selection from 2.4 to 200 volts.
The B suffix identifies standard voltage tolerances of plus/minus 5%.
