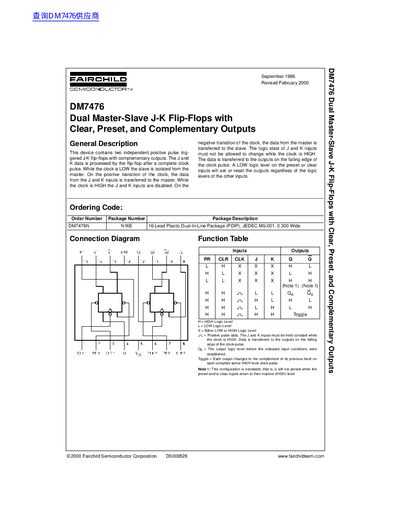

This document describes the features and characteristics of the DM7476 dual master-slave J-K flip-flops with clear, preset, and complementary outputs, produced by Fairchild Semiconductor Corporation.
This document is a technical datasheet for the DM7476 integrated circuit, manufactured by Fairchild Semiconductor. The device contains two independent positive pulse triggered J-K flip-flops with complementary outputs (Q and Q-bar). It features preset and clear inputs to set or reset the state regardless of other input levels.
| Supply Voltage (Nominal) | 5V |
|---|---|
| Operating Temperature Range | 0°C to +70°C |
| Package Type | 16-Lead Plastic Dual-In-Line Package (PDIP) |
| Output Current (LOW Level) | 16 mA |
The device contains two independent positive pulse triggered J-K flip-flops with complementary outputs.
Data is transferred to the outputs on the falling edge of the clock pulse.
A LOW logic level on the preset or clear inputs will set or reset the outputs regardless of other input levels.
