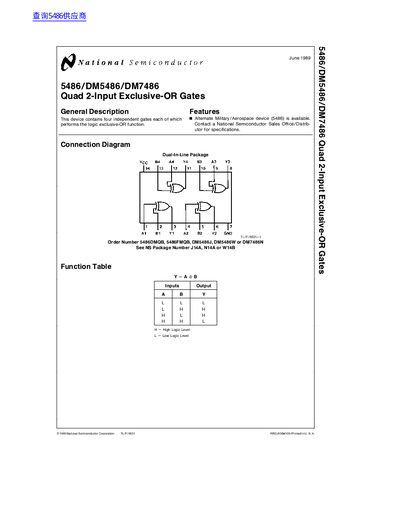

National Semiconductor 5486/DM5486/DM7486 Quad 2-Input Exclusive-OR Gates Datasheet

The 5486 is a quad 2-input exclusive-OR gate from National Semiconductor Corporation. It has a rated operating voltage of 7V, an input voltage of 5.5V, and a working temperature range of -55°C to 125°C. The storage temperature range is -65°C to 150°C.

Brand: National Semiconductor
Category: Chips
Document type: Datasheet
Language: English
Pages: 6
File format: PDF
File size: 101 KB
Published: 12 June, 2012
Updated: 30 September, 2023
MD5 checksum: 88A6D6DEABE7D47BB27E2AB8B2BA549F
PDF: National Semiconductor 5486/DM5486/DM7486 Quad 2-Input Exclusive-OR Gates Datasheet PDF

About this manual

This document is a technical datasheet for the National Semiconductor 5486/DM5486/DM7486 series of Quad 2-Input Exclusive-OR gates. It provides general descriptions, connection diagrams, function tables, and absolute maximum ratings for military (5486), commercial (7486), and dual-military (DM5486) variants.

What's inside

General Description
Connection Diagram
Function Table
Absolute Maximum Ratings
Recommended Operating Conditions
Electrical Characteristics
Switching Characteristics
Physical Dimensions

Specifications

Low Level Output Current (IOL)	16 mA
Operating Free Air Temperature Range (DM54/DM74)	-55°C to +125°C

Frequently asked questions

What is the function of this device?

The device contains four independent gates that perform the logic exclusive-OR function.

Are there military versions available?

Yes, the Alternate Military/Aerospace device (5486) is available for this product line.

What are the order numbers for the ceramic packages?

The order numbers for the 14-Lead Ceramic Dual-In-Line Package are 5486DMQB, 5486FMQB, DM5486J, or DM5486W.
