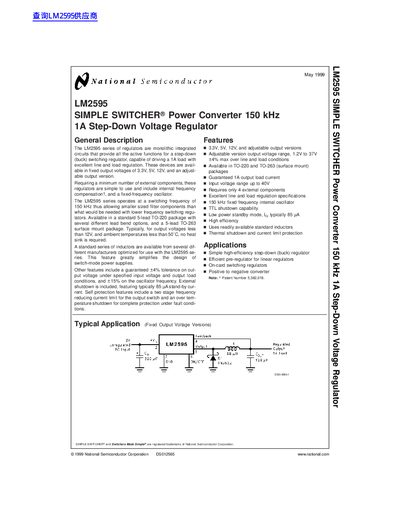

LM2595 SIMPLE SWITCHER® Power Converter 150 kHz 1A Step-Down Voltage Regulator
The LM2595 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 1A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version.
Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed-frequency oscillator. The LM2595 series operates at a switching frequency of 150 kHz, allowing smaller sized filter components than what would be needed with lower frequency switching regulators.
| Output Voltage | 3.3V, 5V, 12V, and adjustable |
|---|---|
| Output Load Current | 1A |
| Switching Frequency | 150 kHz |
| Input Voltage Range | 4.5V to 40V |
| External Components Required | 4 |
| Output Voltage Tolerance | +4% max |
| Oscillator Frequency Tolerance | +15% |
The adjustable version output voltage range is 1.2V to 37V.
No heat sink is required for output voltages less than 12V and ambient temperatures less than 50°C.
The device includes thermal shutdown and a two-stage frequency reducing current limit for the output switch.
