DP83815 is a single-chip 10/100 Mb/s Ethernet Controller for the PCI bus from National Semiconductor. It is targeted at low-cost, high volume PC mother boards, adapter cards, and embedded systems.

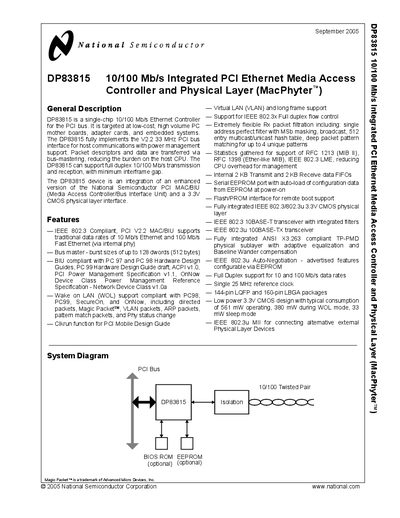

The document describes the National Semiconductor DP83815, a single-chip 10/100 Mb/s Ethernet Controller for the PCI bus. It integrates an enhanced Media Access Controller (MAC) and Bus Interface Unit (BIU) with a fully integrated IEEE 802.3/802.3u 3.3V CMOS physical layer.
| Data Rates | 10/100 Mb/s Ethernet and 100 Mb/s Fast Ethernet |
|---|---|
| Bus Interface | V2.2 33 MHz PCI bus interface |
| Power Supply | 3.3V CMOS design |
| Operating Power Consumption | 561 mW typical |
| Sleep Mode Power Consumption | 33 mW |
| Package Types | 144-pin LQFP and 160-pin LBGA |
The DP83815 is a single-chip 10/100 Mb/s Ethernet Controller for the PCI bus.
Yes, it supports Wake on LAN (WOL) compliant with PC98, PCg9, SecureOn, and OnNow.
