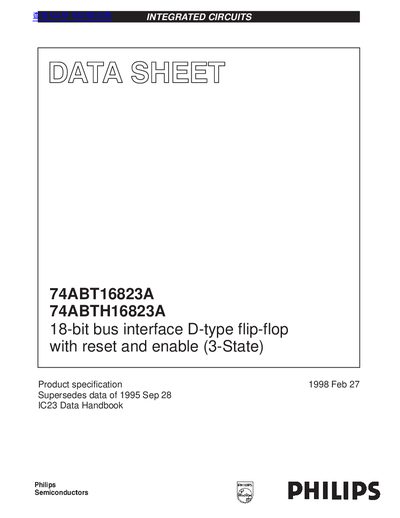

PHILIPS 74ABT16823A 74ABTH16823A 18-bit bus interface D-type flip-flop with reset enable (3-State) handbook

74ABT16823A/74ABTH16823A is a 18-bit bus interface D-type flip-flop with reset and enable (3-State) produced by Philips Semiconductors

Brand: Philips
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 12
File format: PDF
File size: 89 KB
Published: 12 June, 2012
Updated: 01 October, 2023
Model: 74ABT16823A
MD5 checksum: AA0C7A871B368C8E953BC1EF97668DBF
PDF: PHILIPS 74ABT16823A 74ABTH16823A 18-bit bus interface D-type flip-flop with reset enable (3-State) handbook PDF

About this manual

This document is a product specification datasheet for the Philips 74ABT16823A and 74ABTH16823A integrated circuits. These devices are 18-bit bus interface registers designed to eliminate the need for extra buffering packages in high-speed microprocessor systems. They feature two sets of high-speed parallel registers with positive edge-triggered D-type flip-flops, clock enable, and master reset capabilities.

What's inside

Features
Description
Quick Reference Data
Logic Symbol
Pin Configuration
Function Table
Absolute Maximum Ratings
DC Electrical Characteristics
AC Characteristics
Package Information

Specifications

Output capability	+64mA/-32mA
Operating temperature range	-40°C to +85°C
Package type	56-Pin Plastic SSOP or TSSOP

Frequently asked questions

Is live insertion permitted for these devices?

Yes, live insertion and extraction are permitted for the 74ABT16823A and 74ABTH16823A.

What is the maximum operating temperature range for this device?

The device operates in a free-air temperature range from -40°C to +85°C.

What is the maximum DC supply voltage rating?

The maximum DC supply voltage rating is +7.0 V.

What is the maximum output current capability?

The output capability is +64mA/-32mA.
