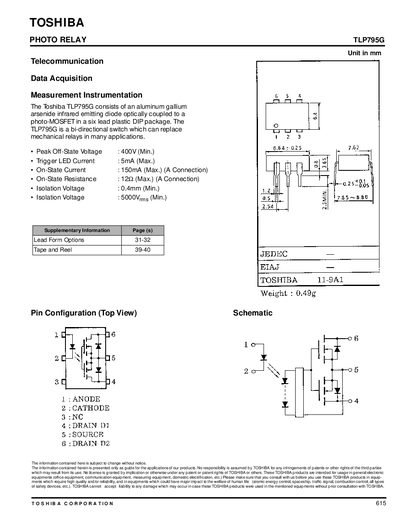

TLP795G is a bi-directional switch produced by Toshiba Corporation, which can replace mechanical relays in many applications. Its features include a peak off-state voltage of 400V (minimum), consisting of an aluminum gallium arsenide infrared emitting diode optically coupled to a six lead plastic DIP package photo-MOSFET.
The Toshiba TLP795G is a bi-directional switch utilizing an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET. It is designed in a six lead plastic DIP package and can replace mechanical relays in various applications such as telecommunication, data acquisition, and measurement instrumentation.
The document provides comprehensive electrical characteristics including maximum ratings, individual LED and detector specifications, coupled electrical parameters, isolation characteristics, and switching times. It also includes graphical representations of power dissipation versus ambient temperature for different connection configurations.
| Peak Off-State Voltage | 400V (Min.) |
|---|---|
| Trigger LED Current | 5mA (Max.) |
| On-State Current (A Connection) | 150mA (Max.) |
| Isolation Voltage (AC, 1 min.) | 5000Vrms (Min.) |
The maximum junction temperature is 125 °C.
The recommended operating supply voltage ranges from -3V to +30V.
