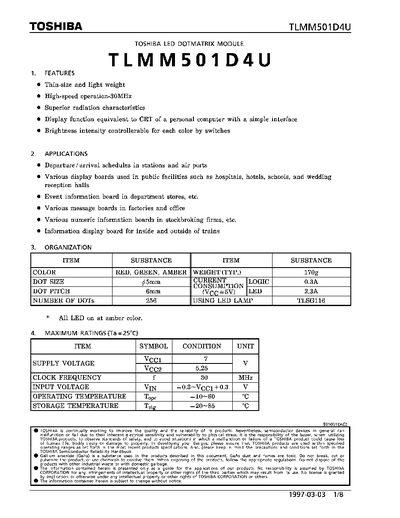

The Toshiba TLMM501D4U is a thin-size and light-weight LED dotmatrix module designed for high-speed operation at up to 30MHz. It features superior radiation characteristics and provides a display function equivalent to a CRT with a simple interface, allowing brightness intensity control for each color via switches.
The module utilizes a 16x16 LED array (256 dots) with red, green, and amber colors and is suitable for various applications including departure/arrival schedules at stations, event information boards in department stores, and numeric displays. It operates within a supply voltage range of 4.75V to 5.25V and an operating temperature range of -10°C to +60°C.
| Clock Frequency | 30 MHz |
|---|---|
| Weight (Typ.) | 170g |
| Dot Size | 5mm |
| Dot Pitch | 6mm |
| Number of Dots | 256 |
| Supply Voltage (Vcc1) | 4.75 to 5.25 V |
| Operating Temperature | -10 to +60 C |
The module supports a high-speed operation of up to 30MHz.
The module contains an array of 256 dots arranged as a 16x16 LED grid.
The device should be operated between -10°C and +60°C.
