The THS10064 is a 10-bit 6 MSPS single-chip ADC, using low-power CMOS technology, with a 16-word FIFO buffer, working voltage 3V or 5V, and is mainly used in radar, communication, control, high-bandwidth DSP front-end and other fields

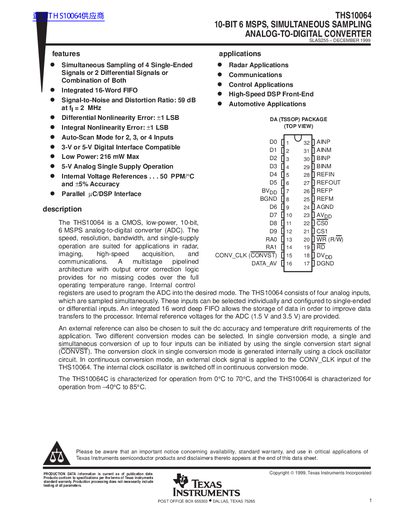

The THS10064 is a CMOS, low-power analog-to-digital converter featuring 10-bit resolution and a conversion speed of up to 6 MSPS. It supports the simultaneous sampling of four single-ended signals or two differential signals. The device utilizes a multistage pipelined architecture with output error correction logic to ensure no missing codes over the full operating temperature range.
The converter includes an integrated 16-word deep FIFO for data storage and provides internal voltage references (1.5 V and 3.5 V) or allows connection of external references. It operates on a single 5-V analog supply with digital interfaces compatible with both 3-V and 5-V logic levels, consuming a maximum power dissipation of 216 mW.
| Resolution | 10 Bits |
|---|---|
| Conversion Speed | 6 MSPS |
| Integral Nonlinearity (INL) | +/- 1 LSB |
| Differential Nonlinearity (DNL) | +/- 1 LSB |
| Max Power Dissipation | 216 mW |
| Analog Supply Voltage (AVDD) | 5 V |
The THS10064C is characterized for operation from 0°C to 70°C.
The THS10064I is characterized for operation from -40°C to 85°C.
Yes, an external reference can be chosen at the REFP and REFM inputs.
