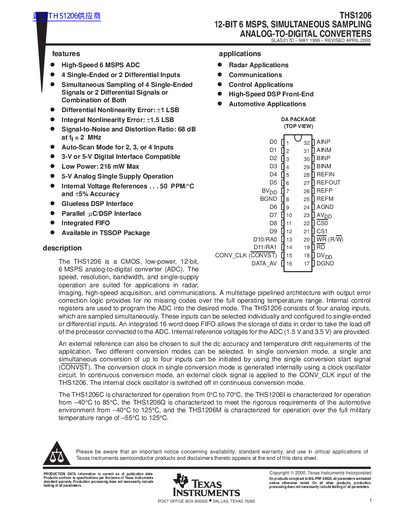

The THS1206 is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC). The speed, resolution, bandwidth, and single-supply operation are suited for applications in radar, imaging, high-speed acquisition, and communications. A multistage pipelined architecture with output error correction logic provides for no missing codes over the full operating temperature range. Internal control registers are used to program the ADC into the desired mode. The THS1206 consists of four analog inputs, which are sampled simultaneously.
The THS1206 is a CMOS, low-power, 12-bit, 6 MSPS analog-to-digital converter (ADC) designed for high-speed applications such as radar, imaging, and communications. It features four analog inputs that can be sampled simultaneously, configured individually as single-ended or differential signals. The device includes an integrated 16-word deep FIFO to reduce processor load and offers internal voltage references of 1.5 V and 3.5 V, with the option for external references.
| Resolution | 12-bit |
|---|---|
| Sampling Rate | 6 MSPS |
| Number of Inputs | 4 Single-Ended or 2 Differential |
| Differential Nonlinearity Error | +1 LSB |
| Integral Nonlinearity Error | +1.5 LSB |
| Signal-to-Noise and Distortion Ratio | 68 dB |
| Max Power Consumption | 216 mW |
| Analog Supply Voltage | 5 V |
| FIFO Depth | 16 words |
The THS1206C is characterized for operation from 0°C to 70°C.
The THS1206Q is characterized for operation from -40°C to 125°C.
Yes, an external reference can be applied to REFP and REFM inputs.
