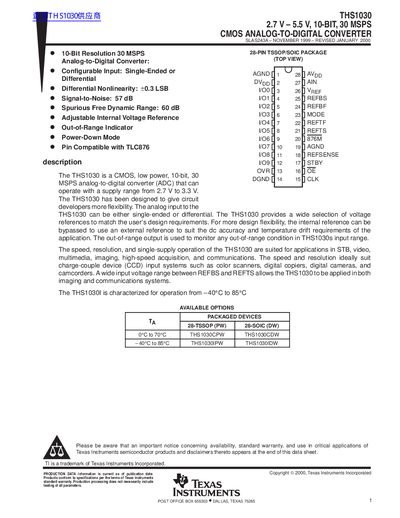

The THS1030 is a CMOS, low power, 10-bit, 30 MSPS analog-to-digital converter (ADC) that can operate with a supply range from 2.7 V to 3.3 V. It provides a wide selection of voltage references to match the user's design requirements.
The THS1030 is a CMOS, low power, 10-bit, 30 MSPS analog-to-digital converter (ADC) that operates with a supply range from 2.7 V to 3.3 V. It features configurable input modes (single-ended or differential), an adjustable internal voltage reference, and an out-of-range indicator. The device is pin compatible with the TLC876.
| Resolution | 10 Bits |
|---|---|
| Sampling Rate | 30 MSPS |
| Supply Voltage | 2.7 V to 5.5 V |
| Signal-to-Noise Ratio | 57 dB |
| Spurious Free Dynamic Range | 60 dB |
| Differential Nonlinearity | +0.3 LSB |
| Package Type | 28-Pin TSSOP/SOIC |
The device operates with a supply range from 2.7 V to 3.3 V.
Yes, the analog input can be either single-ended or differential.
Yes, the internal reference can be bypassed to use an external reference.
