This document introduces the features and characteristics of the THS1041 10-bit 40MSPS analog-to-digital converter, including operating voltage, input mode, built-in programmable gain amplifier, digital clamp, internal adjustable voltage reference, nonlinearity, signal-to-noise ratio, dynamic range, output format, etc.

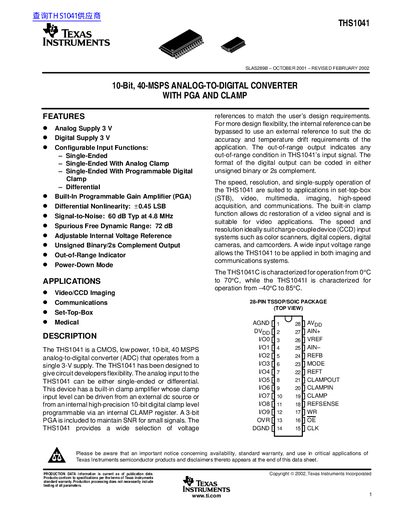

The THS1041 is a CMOS, low power, 10-bit, 40 MSPS analog-to-digital converter (ADC) that operates from a single 3-V supply. It features configurable input functions including single-ended, differential, and programmable digital clamp modes.
| Resolution | 10 Bits |
|---|---|
| Operating Temperature (C) | 0°C to 70°C |
The THS1041 provides a resolution of 10 bits.
The signal-to-noise ratio is typically 60 dB at 4.8 MHz.
