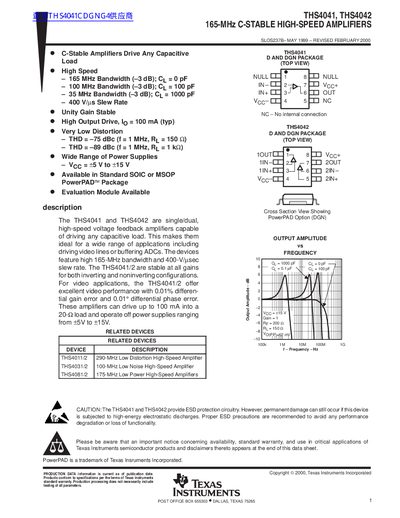

The THS4041/2 165MHz C-Stable High-Speed Amplifiers are single/dual, high-speed voltage feedback amplifiers capable of driving any capacitive load.
The document provides technical data for the THS4041 (single channel) and THS4042 (dual channel) voltage feedback amplifiers. These devices are designed to drive any capacitive load, making them suitable for video lines and ADC buffering applications.
Key specifications include a 165-MHz bandwidth at zero load capacitance, a slew rate of 400 V/µs, and unity gain stability. The amplifiers operate with power supplies ranging from ±5V to ±15V and can drive up to 100 mA into a 200Ω load.
| Slew Rate | 400 V/µs |
|---|---|
| Output Current | 100 mA (typ) |
The devices can drive up to 100 mA into a load.
The bandwidth is 100 MHz at -3 dB with this load.
