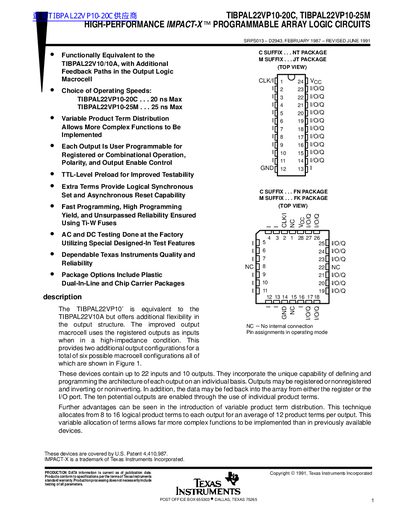

TIBPAL22VP10-20C/25M is a high-performance programmable array logic circuit produced by TI. It is functionally equivalent to TIBPAL22V10/10A, but adds feedback paths in the output logic macrocell. It offers a choice of 20 ns or 25 ns maximum operating speed. All outputs can be user programmable for registered or combinational operation, polarity, and output enable control. TTL level preload is provided for improved testability.
The TIBPAL22VP10 is a functionally equivalent device to the TIBPAL22V10A but offers additional flexibility in output structure, including registered or combinational operation and variable product term distribution. It contains up to 22 inputs and 10 outputs, allowing for complex functions of up to 800 equivalent gates.
| Max Propagation Delay (20C) | 20 ns Max |
|---|---|
| Max Propagation Delay (25M) | 25 ns Max |
| Number of Inputs | Up to 22 inputs |
| Number of Outputs | 10 outputs |
| Supply Voltage (Nominal) | 5 V |
The primary differences are their maximum propagation delays (20 ns vs 25 ns) and their operating temperature ranges.
Yes, each output is user programmable for registered or combinational operation.
