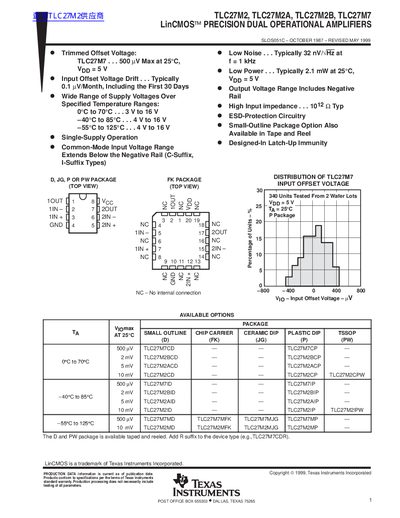

The TLC27M2, TLC27M2A, TLC27M2B, TLC27M7 LinCMOS PRECISION DUAL OPERATIONAL AMPLIFIERS is a low noise, low power, single supply operation operational amplifier. It features a wide range of supply voltages, large output voltage range, small input offset voltage, low input impedance, designed-in latch-up immunity and ESD protection circuitry.
The document describes the TLC27M2, TLC27M2A, TLC27M2B, and TLC27M7 devices, which are LinCMOS precision dual operational amplifiers. These components combine a wide range of input offset voltage grades with low drift, high input impedance, and low noise, making them suitable for applications previously reserved for bipolar devices but with lower power consumption.
The text provides absolute maximum ratings, recommended operating conditions, and detailed electrical characteristics tables for various supply voltages (5V and 10V). It also lists available package options including Small Outline, Chip Carrier, Ceramic DIP, Plastic DIP, and TSSOP.
| Input Offset Voltage Drift | Typically 0.1 V/Month |
|---|---|
| Low Noise | Typically 32 nV/VHz at f=1kHz |
| Low Power Consumption | Typically 2.1 mW at 25°C, Vpp=5V |
| High Input Impedance | 10^12 Ohm Typ |
| Supply Voltage Range (Industrial) | -40°C to 85°C: 4V to 16V |
| ESD Protection | Up to 2000 V |
The typical input offset voltage drift is 0.1 V/Month, including the first 30 days.
C-suffix operates from 0°C to 70°C, I-suffix from -40°C to 85°C, and M-suffix from -55°C to 125°C.
Yes, these amplifiers feature low voltage single-supply operation.
