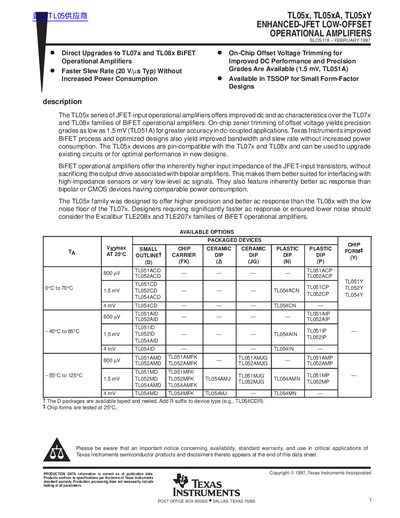

TL05x, TL05xA, TL05xY ENHANCED-JFET LOW-OFFSET OPERATIONAL AMPLIFIERS is a low offset operational amplifier released by TI. This series of products has improved DC accuracy and faster conversion rate, while the power consumption is also lower. It can be used to upgrade existing circuits or to obtain the best performance in new designs.
The TLO5x family of JFET-input operational amplifiers offers improved DC and AC characteristics over previous TLO7x and TLO8x families. Features include on-chip zener trimming for precision offset voltage grades as low as 1.5 mV, faster slew rates up to 20 V/s typical, and availability in various packages including TSSOP for small form-factor designs.
These devices are pin-compatible with the TLO7x and TLO8x families, allowing them to upgrade existing circuits or optimize new designs. The amplifiers combine the high input impedance of JFET inputs with the output drive capabilities of bipolar amplifiers, making them suitable for interfacing with high-impedance sensors.
| Offset Voltage (TLO51A) | 1.5 mV |
|---|---|
| Slew Rate | 20 V/s Typ |
| Supply Voltage Range | +5V to +15V |
| Operating Temperature (M Suffix) | -55°C to 125°C |
The typical slew rate is 20 V/s.
Yes, they are pin-compatible with the TLO7x and TLO8x families.
