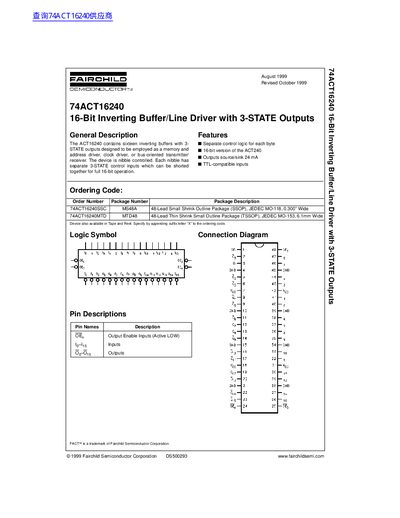

This document introduces the characteristics of the 74ACT16240 16-bit inverting buffer/line driver with 3-STATE outputs, which can be used as a memory and address driver, clock driver, or bus-oriented transmitter/receiver. The device is nibble controlled. Each nibble has separate 3-STATE control inputs which can be shorted together for full 16-bit operation.
The ACT16240 is a 16-bit device containing sixteen inverting buffers with 3-STATE standard outputs. It functions as a nibble-controlled driver where each nibble has separate control inputs that can be shorted together for full 16-bit operation. The device is suitable for use as a memory and address driver, clock driver, or bus-oriented transmitter/receiver.
| Operating Temperature Range | -40°C to +85°C |
|---|---|
| Output Source/Sink Current | 24 mA |
| Maximum Junction Temperature | +140°C |
| Storage Temperature Range | -65°C to +150°C |
It contains sixteen inverting buffers with 3-STATE outputs designed for memory and address driving.
It is nibble (4 bits) controlled, allowing each nibble to function independently or together.
